Application
Solar grade process quartz tube is widely used in the oxidation and diffusion process in solar wafer manufacturing.
Product Feature
Solar grade process quartz tube features high purity, low hydroxyl and high temperature resistance, etc.
Product Type
PQ181S , PQ181S-R
Typical Size
OD Range | OD Tolerance | WT Tolerance | Sliding | Ovality | Bow |
OD＜100.00 | ±1.00 | ±10.00% | 15.00% | 1.00% | 0.10% |
100.00≤OD＜200.00 | ±1.00 | ±10.00% | 15.00% | 1.00% | 0.10% |
200.00≤OD＜300.00 | ±1.00 | ±10.00% | 15.00% | 1.00% | 0.10% |
300.00≤OD＜400.00 | ±1.00 | ±10.00% | 15.00% | 1.00% | 0.10% |
400.00≤OD＜500.00 | ±1.00 | ±10.00% | 15.00% | 1.00% | 0.10% |
500.00≤OD＜900.00 | ±2.00 | ±10.00% | 15.00% | 1.00% | 0.10% |
Physical & Chemical Properties
1) Trace Elements (Unit：ppm)
Code | Criteria | Al | Ca | Cr | Cu | Fe | K | Li | Mg | Mn | Na | Ti | Zr |
PQ181E | Typical | 13 | 0.5 | <0.05 | <0.05 | 0.1 | 0.1 | 0.3 | 0.05 | 0.05 | 0.1 | 1.3 | 1 |
Maximum | 19 | 1 | 0.1 | 0.1 | 0.5 | 1 | 1 | 0.2 | 0.2 | 1 | 2 | 2 | |
PQ181EH | Typical | 8 | 0.6 | <0.05 | <0.01 | 0.1 | 0.1 | 0.2 | 0.05 | 0.05 | 0.1 | 1.3 | 1 |
Maximum | 10 | 1 | 0.1 | <0.01 | 0.5 | 0.5 | 0.5 | 0.2 | 0.2 | 0.5 | 2 | 2 |
Note: PQ181E-R/PQ181EH-R is semiconductor grade resized tube.
2) OH Content
PQ181E/ PQ181EH | OH＜10ppm | PQ181E-R/ PQ181EH-R | OH＜30ppm |
3) Physical Properties
Item | Index Value |
Density（g/cm3） | 2.2 |
Heat Conductivity（w/m·k，1000℃） | 2.28 |
Coefficient of Thermal Expansion（℃-1，1000℃） | 5.5×10-7 |
Softening Point（℃） | 1670 |
Annealing Point（℃） | 1210 |
Strain Point（℃） | 1110 |

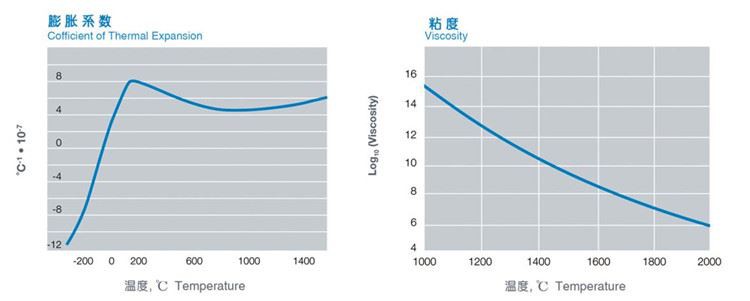

4) Coefficient of Thermal Expansion & Viscosity
