Application

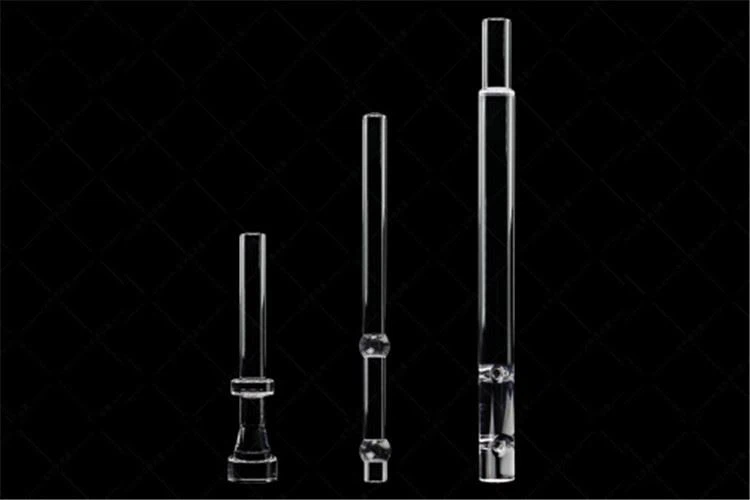

Optical fiber quartz rod is used as seed and handle rod in deposition and extension of VAD and OVD processes.
Characteristics
This Optical fiber grade quartz rod, manufactured by electric continuous fusion method, has the characteristics of high purity more than 99.995% and excellent mechanical strength. Size can be further processed with high precision.
Code
PQ191F
Specifications
OD Range | OD Tolerance | Ovality | Bow |
20.00≤OD＜30.00 | ±1.25% | 1.25% | 0.15% |
30.00≤OD＜50.00 | ±1.25% | 1.25% | 0.15% |
50.00≤OD＜100.00 | ±1.25% | 1.25% | 0.15% |
100.00≤OD＜160.00 | ±1.00% | 1.00% | 0.15% |
Typical Size
OD Range | OD Tolerance | Ovality | Bow |
20.00≤OD＜160.00 | ±1.00% | 1.00% | 0.05% |
Physical & Chemical Properties
1)Trace Elements (Unit：ppm)
Code | Criteria | Al | Ca | Cr | Cu | Fe | K | Li | Mg | Mn | Na | Ti | Zr |
PQ191F | Typical | 16.2 | 1 | <0.05 | <0.05 | 0.5 | 1.2 | 0.9 | 0.2 | <0.05 | 1.1 | 1.5 | 1 |
Maximum | 25 | 1.5 | 0.1 | 0.1 | 1 | 1.5 | 1.5 | 0.2 | 0.2 | 2 | 4 | 2 |
2) OH Content
PQ191F | OH＜50ppm |
3) Physical Properties
Item | Index Value |
Density（g/cm3） | 2.2 |
Heat conductivity（w/m·k，1000℃） | 2.28 |
Coefficient of Thermal Expansion（℃-1，1000℃） | 5.5×10-7 |
Softening Point（℃） | 1670 |
Annealing Point（℃） | 1210 |
Strain Point（℃） | 1110 |

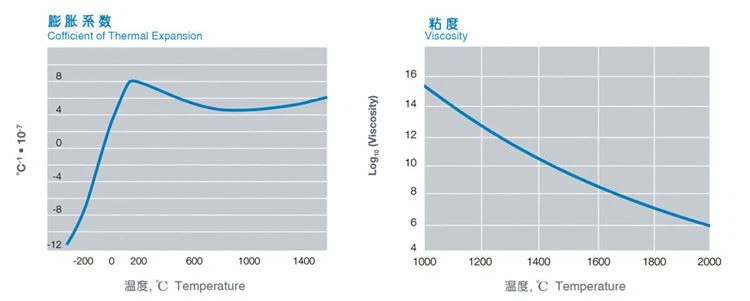

4) Coefficient of Thermal Expansion & Viscosity
